DM series

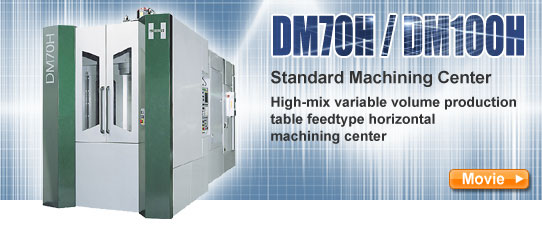

DM70H/DM100H

基本仕様 製品紹介

Type
DM70H DM100H
Travel X-axis 650mm(1,100mm) 1,000mm(1,500mm)
Travel Y-axis 730mm 800mm
Travel Z-axis 650mm(1,000mm) 1,000mm
Space for Work φ730×900mm φ1,300×930mm
Max. weight 500kg 1,500kg
Rapid traverse rate 62m/min(0.7G) 48m/min(0.4G)
Cutting feed rate 1~10,000mm/min 1~10,000mm/min
Max. rotation speed 12,000min-1(15,000min-1) 6,000min-1
Tool holder BT40(HSK-A63, KM6350) BT50(HSK-A100, KM10080)
Max. tool length {Z : 650 stroke}
495mm(BT40)
(560mm (HSK-A63, KM6350))
(*Note)
{Z : 1,000 stroke}
595mm(BT40)
(660mm(HSK-A63, KM6350))


520mm(BT50)
(600mm(HSK-A100, KM10080))
(*Note)
Footprint 2,200mm×5,095mm 3,535mm×6,870mm


*Note: Need to check if there is interference with jig, etc. *(Standard Options)
