COMPACT BRIQUETTING PRESS MACHINE
Compresses and briquettes bulky metal chips.
It is suitable for handling chips generated during metal processing.
It has many advantages, such as reducing the frequency of transportation by up to 75%, collecting cutting oil, saving factory space, improving the factory environment, and increasing work efficiency.
*Internal Results
Main features
-
-

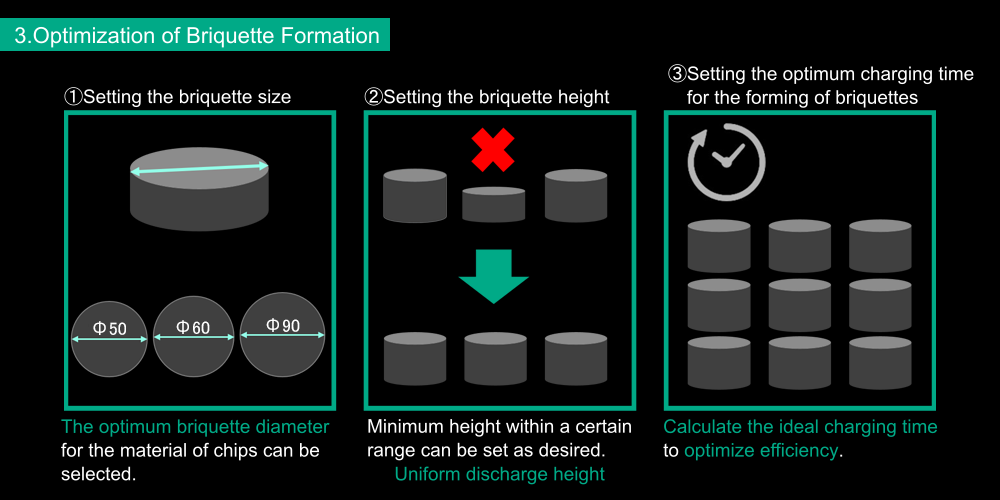

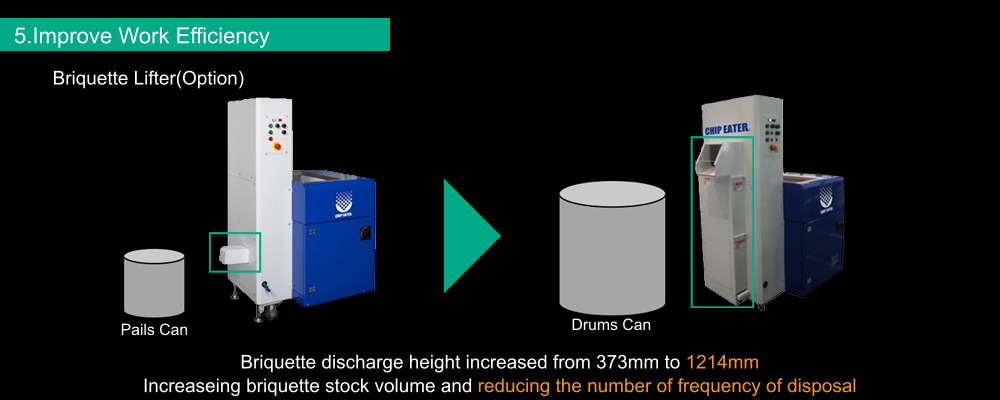

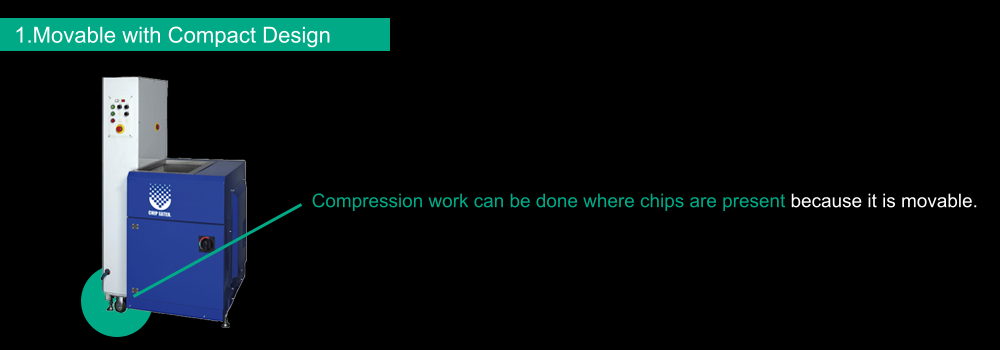

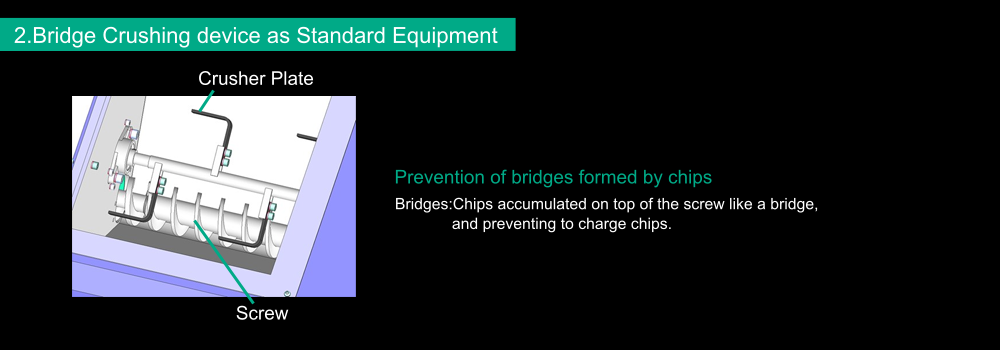

FEATURES OF CHIP EATER
-

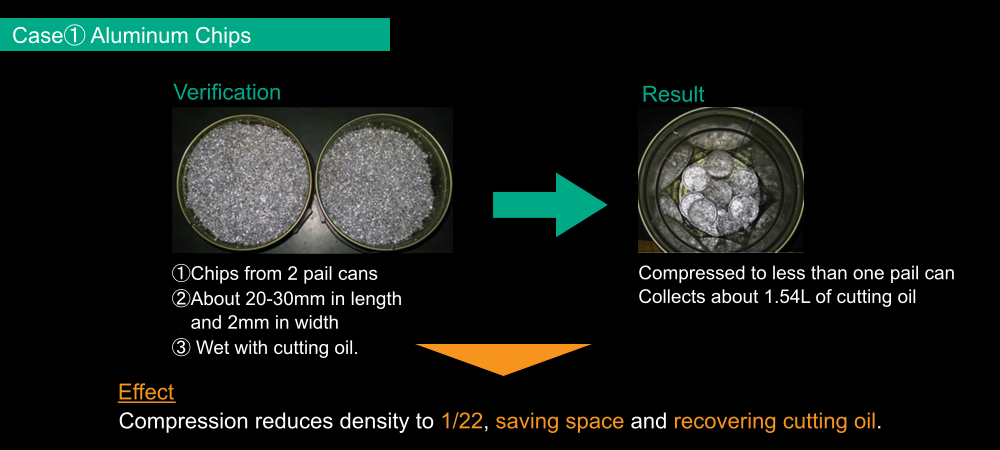

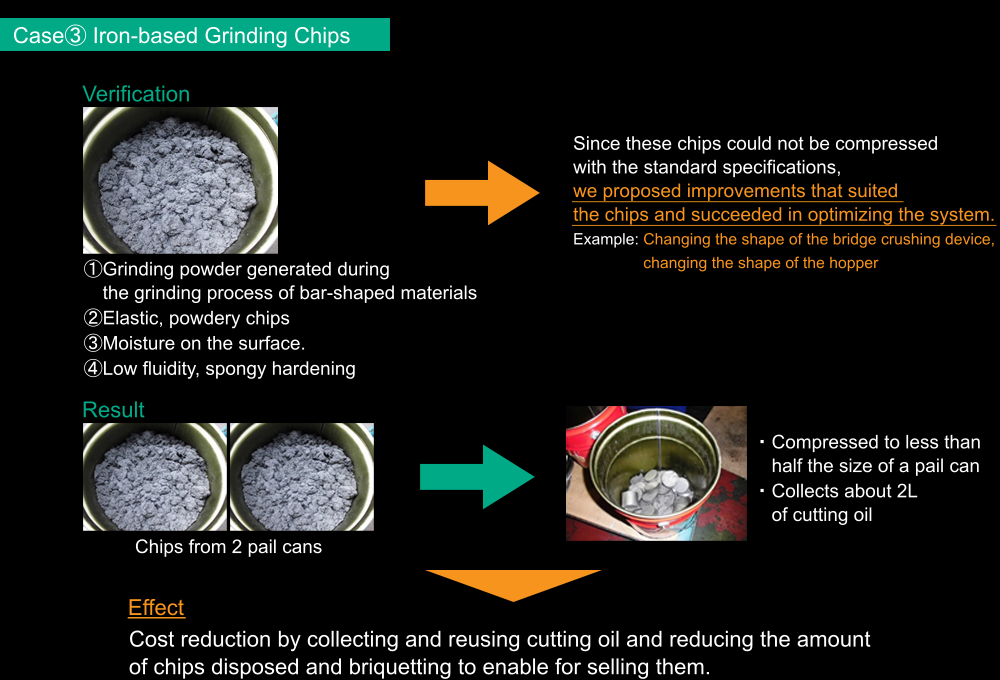

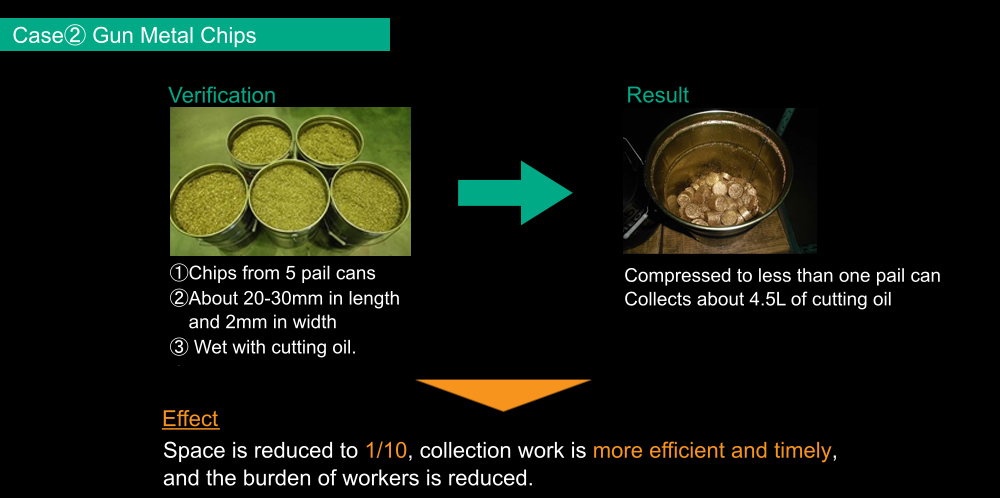

CASE STUDIES
-

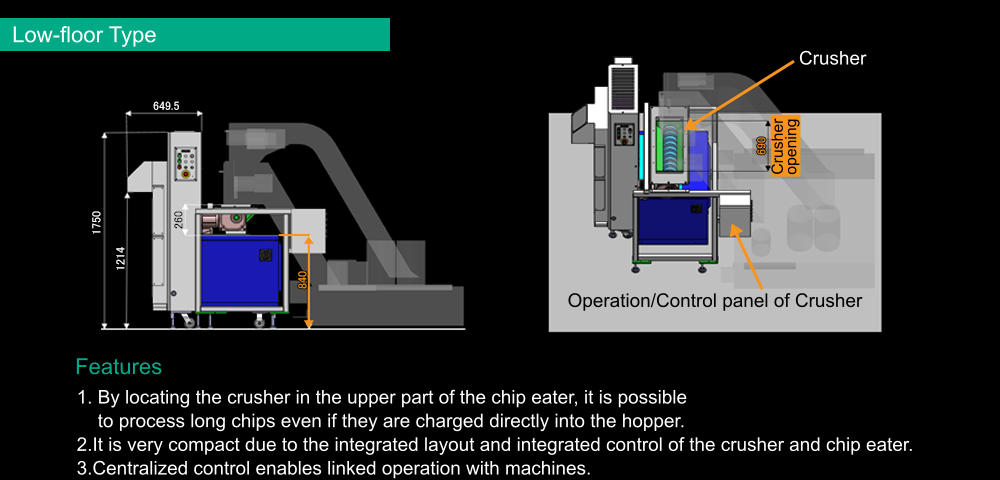

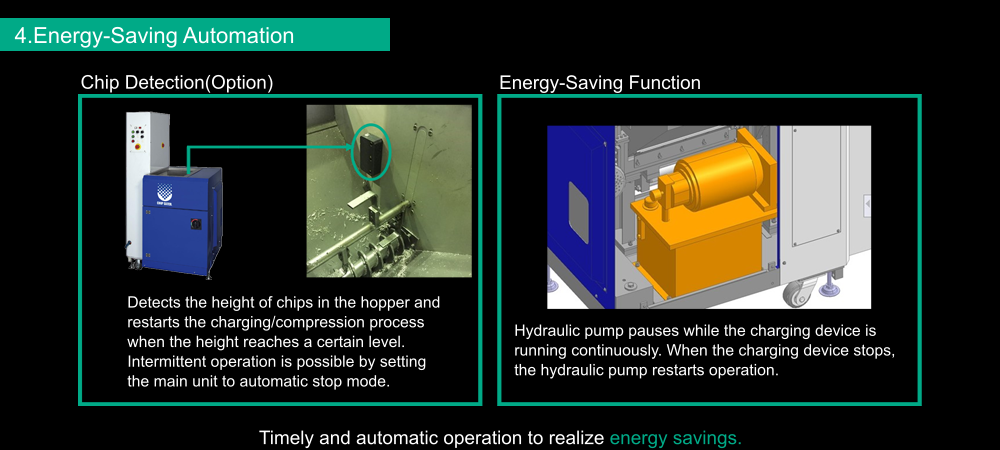

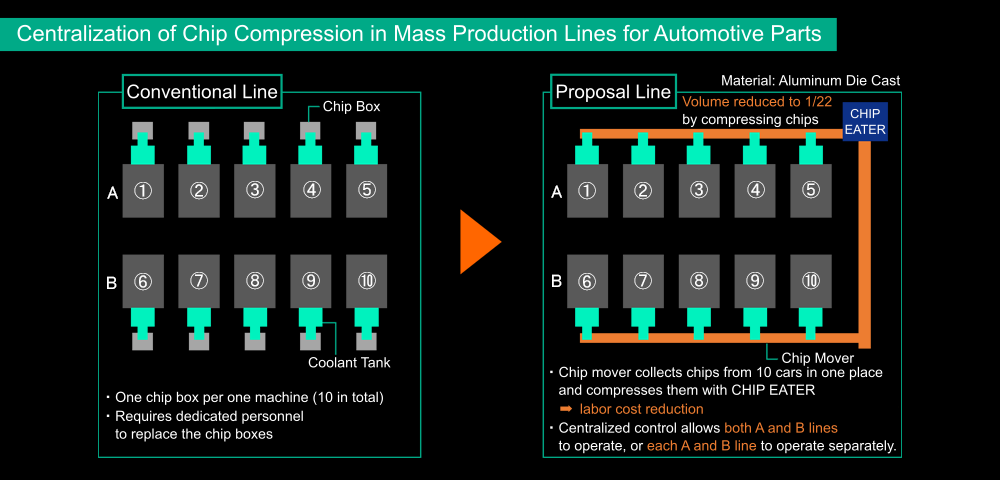

Examples of Modularization and Automation
-

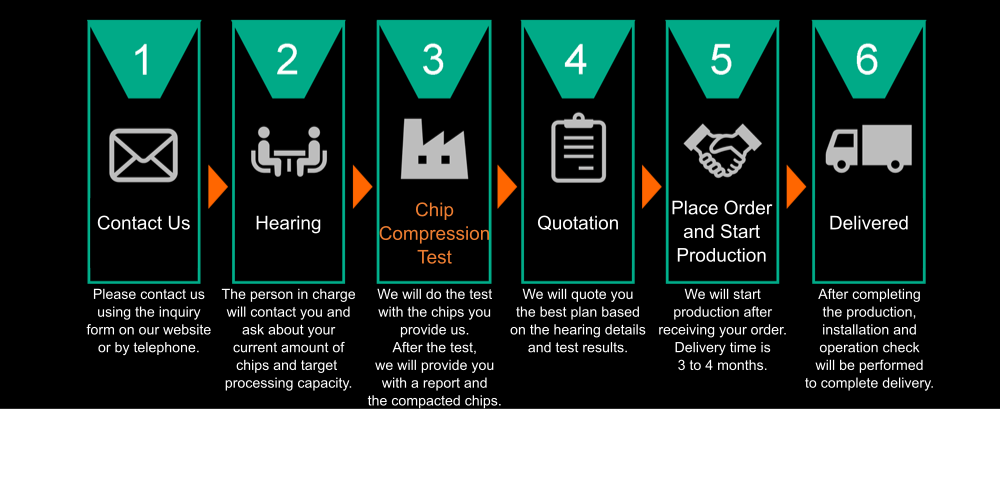

WORKFLOW
Main Specifications
- Briquet Diameter
- φ50mm、φ60mm、φ90mm
- Compression Surface Pressure
- 259MPa（Max）
- Hopper Capacity
- 90L
- Main Electric Motor (Hydraulic Pump)
- 2.2kW
- Screw Electric Motor
- 0.4kW

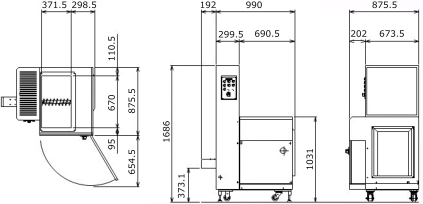

- Standard Layout Drawing

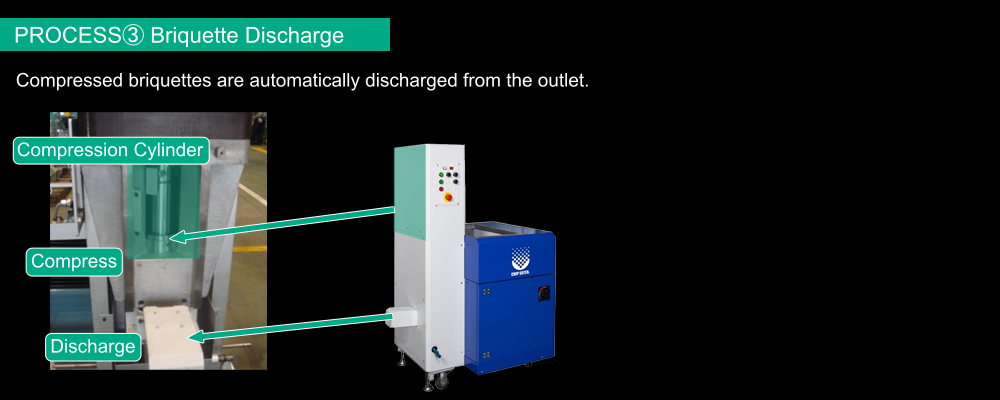

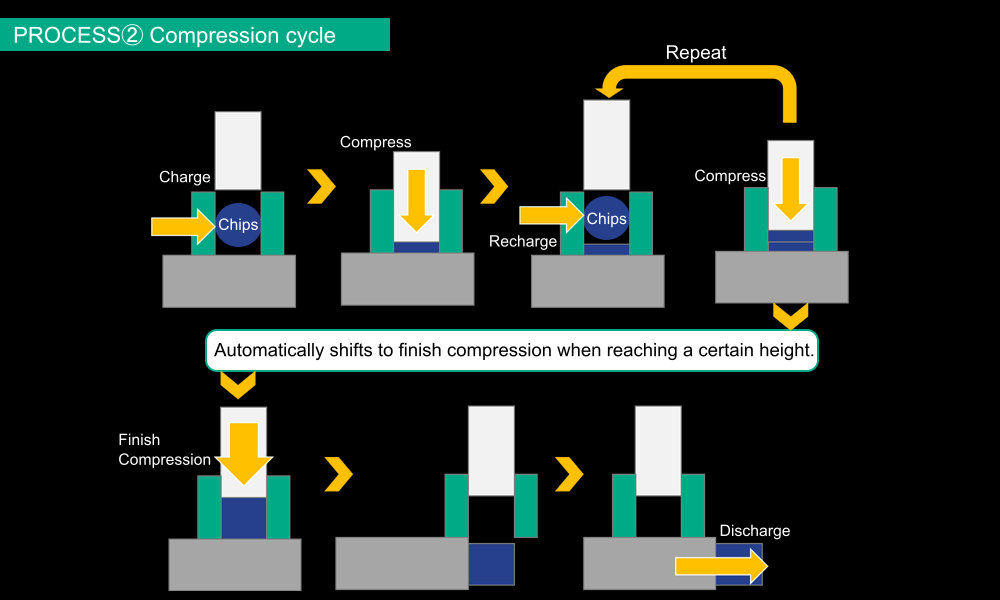

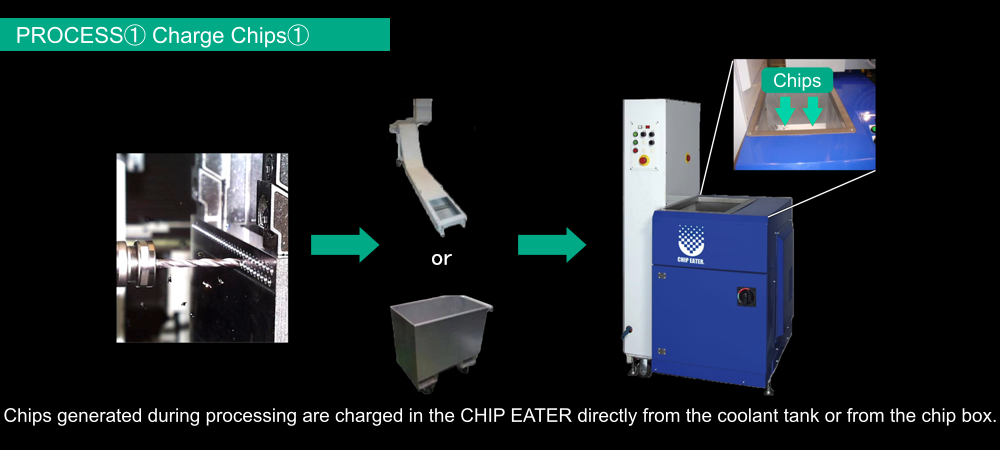

PROCESS（Charge, Compression, Discharge）
