with ULTRASONIC
This is a dedicated ultrasonic processing machine with a bedless structure.

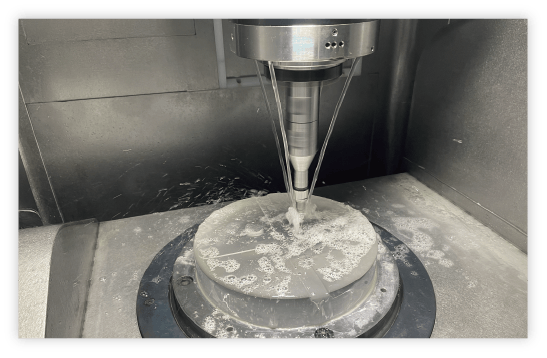

By transmitting ultrasonic waves generated by a transducer to the tool tip, hard and brittle materials (brittle materials) such as glass, ceramics, and CFRP can be processed with high precision.
Main features
-
-
Ultrasonic wave generating components are built into the spindle
The transducer is built into the spindle, enabling high output machining. It can also accommodate large-diameter tools.
Main Specifications
- Max. rotation speed
- 8,000min-1
- Vibration frequency
- 20kHz
- Travel (X, Y, Z)
- 500mm、450mm、500mm
- Tool storage capacity
- 16
- Rapid traverse rate
- 40m/min
- Footprint
- 1,450mm x 2,830mm
Bedless structure ideal for processing brittle materials

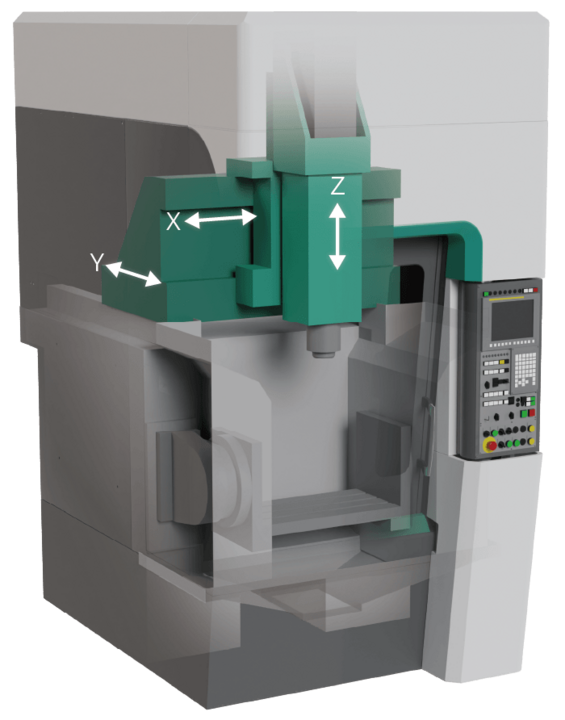

The machine has a bedless structure in which the slide sections of the X, Y, and Z axes are located above the machining chamber. This structure prevents sludge generated during machining from entering the driving and sliding sections of the machine, thus maintaining high accuracy for a long period of time.
In addition, since there is no bed or other structure below the machining chamber, disposal and collection of sludge is easier.
