iMQL®


IMQL
ドライ加工への取り組みの歴史 実例紹介

Minimum quantity lubrication system (internal spindle mixing)
Feature:Environmental MeasuresEnergy SavingHigh-Efficiency Machining
     High PrecisionLong Tool Life


Minimum quantity lubrication system (internal spindle mixing)


MQL means Minimum Quantity Lubrication. This is a new machining method that delivers the required minimum quantity of lubricant mixed with air and performs machining through a continuous supply of this oil/air mixture to the tool tip. This method is also called semi dry machining, near dry machining (NDM), and MMKS.

MQL makes it possible to reduce the amount of lubricant to nearly zero. We HORKOS started first to study and develop, and created "iMQL®".

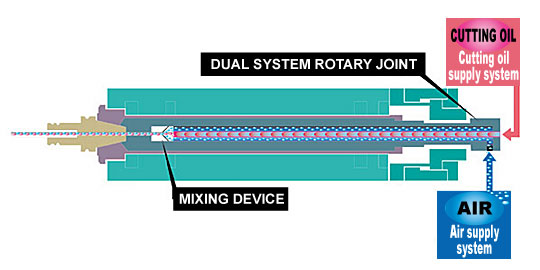

iMQL®: The lubricant and the carrier gas are separately supplied inside spindle and mixed near the cutting tool, and supplied through out of tool tip. iMQL® achieves cutting with no time-lag against frequent ATC, high speed spindle rotation, and high speed feeding.



主軸内部ミキシングMQL装置(特許)


ページの先頭に戻る


Feature

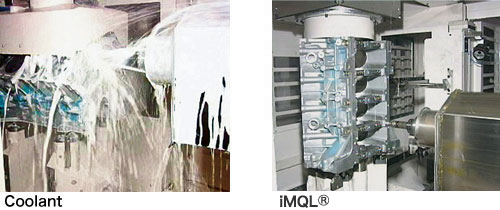

Environmental Measures



環境対応

ページの先頭に戻る

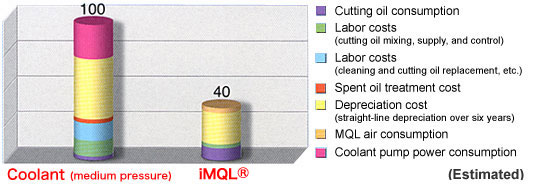

Energy Saving


60% cheaper than medium-pressure coolant through spindle models.



環境対応

ページの先頭に戻る

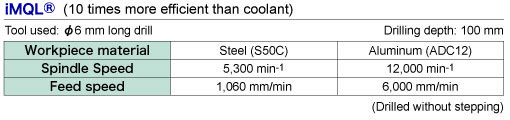

High-Efficiency Machining


HORKOS technology provides high-efficiency machining solutions to processes that have traditionally been responsible for slowing line throughput. Machining centers combining high speed and high rigidity are key to attaining this high efficiency.

環境対応


ページの先頭に戻る

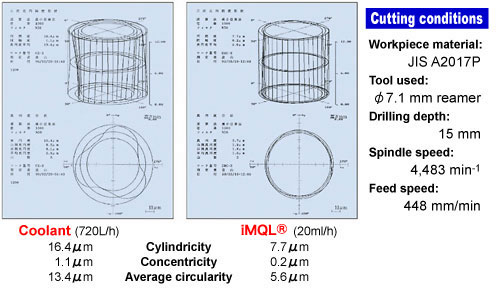

High Precision


Drilling precision of 1,800th hole.



環境対応

ページの先頭に戻る

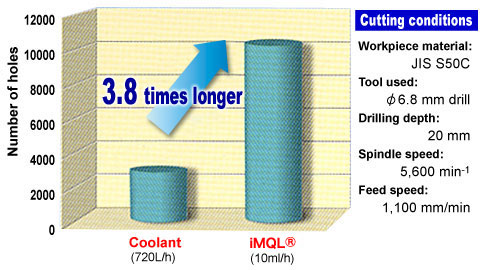

Long Tool Life


Outstanding service life of over 10,000 holes.



環境対応

Contact Us

More about iMQL® >>
