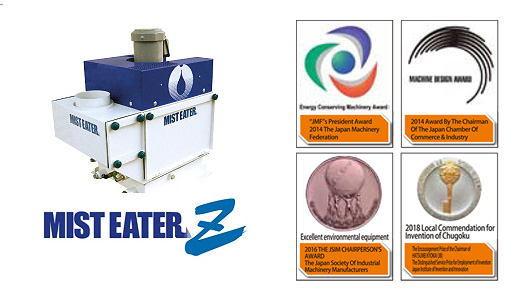

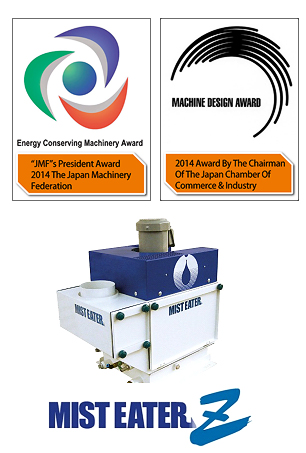

Mist eater Z

FILTERLESS NEW GENERATION Mist eater Z

Features

1.ENERGY SAVING
 Even though motor capacity was down a notch, it achieves to keep the amount of air equivalent to the conventional models. (Compared to our conventional models)
2.HIGH EFFICIENCY
 With our own cyclone technology "Z cyclone unit", it achieves a high collection efficiency like the filter method. (Compared to our conventional models)
3.LONG LIFE
 It achieves the long-term suction force with cyclone structure. (Compared to our conventional models)


Other features

・WASTE REDUCTION
Since it's filterless, no need to dispose filters.
・COMPACT
Footprint is smaller compared with our conventional models.
・EASY MAINTENANCE
Maintenance can be done easily without tools.
With the filterless structure, it reduces the amount of maintenance, but the periodical inspection is required. Thorough of good maintainability was kept from conventional models' and this equipment takes over the experience.
・CLEANING FUNCTION (OPTION)
Inside automatic cleaning function

ENERGY SAVING INFORMATION

ENERGY SAVING INFORMATION

USE

・Machine Tools Processing (Oil-based coolant / Water soluble coolant)
・Other equipments that generate mist (ex. Washing machine and etc..)

Patent Infomation

Patent-Pending@ EP, Thailand
WIPO Publication Number: WO2014061201A1
Japan Patent No. 6214043
US Patent No. 8,945,290
China Patent No. ZL201380001785.8
Taiwan Patent No.I-517904

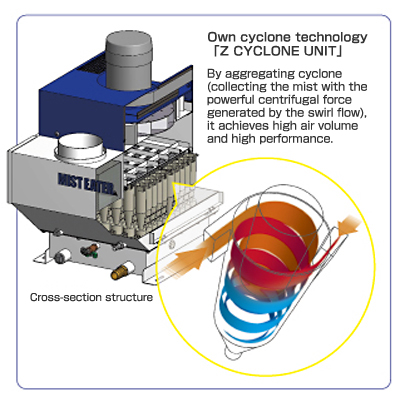

Cross-section strucure

Mist eater Z


Specification

Type Power Electric Motor
(kW)
Performance
(50/60Hz)
Max Temp
(℃)
Ambient Tempera-
ture
(℃)
Weight
(kg)
Intake Diameter
(mm)
Color
Max Airflow
(m3/min)
Max Pressure
(kPa)
Efficiency Ambient Noise
(dB(A))
ME-05Z 3 PHASE
AC200V
0.4 8.5/10 1.25/1.8 2μm
and above
99%
70〜75 60 40
and
below
62 φ124 White

Blue
ME-10Z 0.75 11.5/14 1.5/2.1 72 φ148
ME-15Z 1.5 18/22 2.0/2.8 99 φ198
