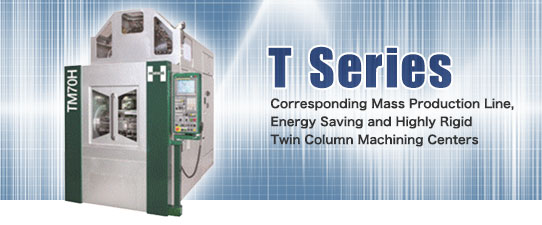

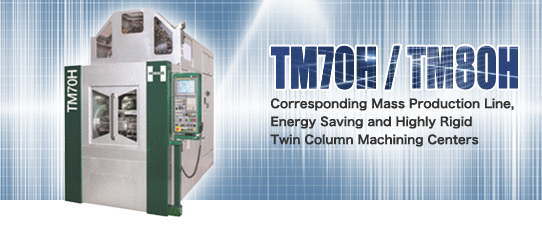

T Series
Feature
■ Higher Productivity・Higher Effeciency・Higher Maintainability
■ Compact Design with Lowered Loading Height
■ Machining Center is Optimized for Mass Production Line
■ Compact Design with Lowered Loading Height
■ Machining Center is Optimized for Mass Production Line
Twin Column Structure
The adoption of twin column structure achieves energy saving, high rigidity, and faster acceleration/deceleration.
The Monolithic structure of a combined bed and the first column provides High Rigidity and adds a low center of gravity to the whole machine .
The movable second column is constructed of ductile cast iron for weight reduction.
Downsizing and weight reduction of movable the Y-axis provides energy savings and allows for faster acceleration/deceleration which in turn increases productivity
Specification
| Type | TS60H | TM70H | TM100H | |||
| Travel X-axis (mm) | 530 | 530 | 700 | 500 | 670 | |
| Travel Y-axis (mm) | 560 | 560 | 560 | 500 | 500 | |
| Travel Z-axis (mm) | 530 | 530 | 530 | 500 | 500 | |
| Rapid traverse rate (m/min) | 62 | 62 | 62 | |||
| Tool holder | HSK-Ａ50、BT30 | HSK-A63、BT40、KM6350 | HSK-A100、BT50, KM10080 | |||
| Tool storage capacity | 16, 24, 30 | 16, 24, 40 | 16 | |||
| Footprint(mm) | 1,375 x 3,310 | 1,500 x 3,425 | 1,670 x 3,425 | 1,500 x 3,675 | 1,670 x 3,675 | |
| Type | TL80H | TL100H | ||
| Travel X-axis (mm) | 530 | 700 | 530 | 700 |
| Travel Y-axis (mm) | 560 | 560 | 560 | 560 |
| Travel Z-axis (mm) | 530 | 530 | 530 | 530 |
| Rapid traverse rate (m/min) | 62 | 62 | ||
| Tool holder | HSK-A63、BT40、KM6350 | HSK-A100、BT50, KM10080 | ||
| Tool storage capacity | 16, 24, 40 | 24 | ||
| Footprint(mm) | 1,530 x 3,705 | 1,700 x 3,705 | 1,530 x 3,805 | 1,670 x 3,675 |
*(Standard Options)
